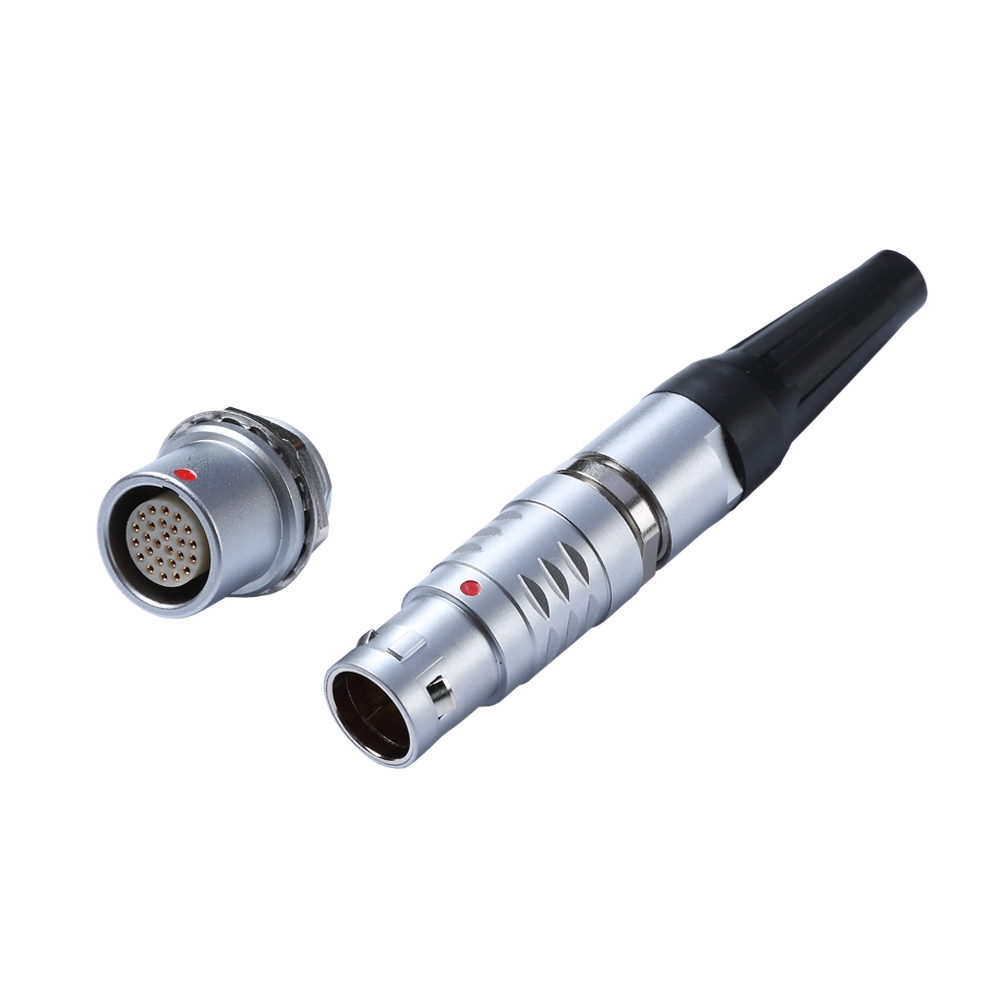

Why Choose a B Series Metal Push-pull Connector for Harsh Environments
2026-10-14
When industrial equipment must operate reliably in moisture, vibration, extreme temperatures, or corrosive conditions, the connector is often the weakest link in the system. Reunion has engineered the B Series Metal Push-pull Connector to solve exactly this problem, combining a rugged metal housing with a precision push-pull locking mechanism that resists accidental disconnection. For engineers specifying equipment for outdoor, marine, aerospace, or heavy industrial use, understanding why this connector outperforms standard plastic or threaded alternatives is essential.
The Engineering Advantages of a Metal Push-pull Design
The B Series Metal Push-pull Connector differs from conventional connectors in three fundamental ways: material, locking mechanism, and sealing strategy. Each contributes directly to performance in harsh environments.
| Feature | Benefit in Harsh Environments |
|---|---|
| Metal shell (brass/stainless steel options) | Resists impact, corrosion, and EMI/RFI interference |
| Push-pull self-latching system | Prevents accidental unmating under vibration |
| Multi-point sealing (O-rings, gaskets) | Achieves IP67/IP68 water and dust protection |
| Keyed polarization | Prevents mismating during blind assembly |
| Wide temperature range | Operates from −55°C to +125°C |
These characteristics make the B Series Metal Push-pull Connector suitable for applications where failure is not an option.
Where the B Series Metal Push-pull Connector Excels
Reunion's B Series Metal Push-pull Connector is widely deployed in sectors that demand long-term reliability:
-
Industrial automation – robotics, servo motors, and factory-floor control systems exposed to coolant and metal dust.
-
Marine and offshore – salt spray, constant humidity, and wave-induced vibration.
-
Medical equipment – sterilization cycles and repeated mating.
-
Broadcast and outdoor lighting – rain, UV exposure, and temperature swings.
-
Rail and transportation – shock, vibration, and electromagnetic interference.
In each case, the metal housing and sealed interface protect signal and power integrity far better than plastic-bodied connectors.
Performance Comparison: B Series vs. Standard Connectors
| Criterion | Standard Plastic Connector | B Series Metal Push-pull Connector |
|---|---|---|
| Ingress protection | IP40–IP54 | IP67/IP68 |
| Vibration resistance | Moderate | High (self-locking) |
| Corrosion resistance | Poor | Excellent (metal shell) |
| Mating cycles | ~500 | 5,000+ |
| EMI shielding | None | Effective |
| Operating temperature | −20°C to +80°C | −55°C to +125°C |
The table above illustrates why the B Series Metal Push-pull Connector is the preferred choice when environmental stress is high.
FAQ: B Series Metal Push-pull Connector
Q: What makes the B Series Metal Push-pull Connector waterproof?
A: The B Series Metal Push-pull Connector uses a multi-stage sealing system that includes an O-ring at the receptacle flange, a gasket at the plug interface, and a cable gland or overmold at the rear. When fully mated, these seals prevent water and dust from reaching the contacts, achieving IP67 or IP68 ratings depending on the specific model. This design allows the connector to survive temporary immersion, heavy rain, and high-pressure washdown without signal loss.
Q: Can the B Series Metal Push-pull Connector withstand high vibration and shock?
A: Yes. The push-pull locking mechanism creates a mechanical latch that cannot be released by vibration alone. Unlike threaded couplings that can slowly loosen, or friction-fit connectors that separate under shock, the B Series Metal Push-pull Connector remains fully engaged until the operator intentionally pulls the release sleeve. This makes it ideal for robotics, rail, and off-highway equipment.
Q: Is the B Series Metal Push-pull Connector available in different pin configurations and materials?
A: Reunion offers the B Series Metal Push-pull Connector in 2 to 32 pins, with options for solder, crimp, or PCB contacts. Shell materials include chrome-plated brass and stainless steel for enhanced corrosion resistance. Custom cable assemblies and overmolding are also available to match specific routing and environmental requirements.
Why Reunion Stands Behind the B Series Metal Push-pull Connector
Reunion manufactures the B Series Metal Push-pull Connector under strict quality control, with full traceability and testing to international standards. Every batch undergoes dielectric withstand, insulation resistance, and mating cycle verification. For designers who need documented reliability, Reunion provides technical drawings, IP test reports, and material certifications.
Contact Us
To request a sample, datasheet, or custom configuration of the B Series Metal Push-pull Connector, contact Reunion today. Our engineering team will help you select the right shell size, pin layout, and sealing option for your harshest application.
